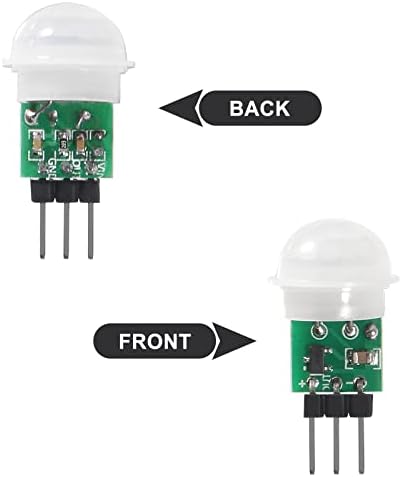

8pcs Human Sensor Module AM312 Mini IR Pyroelectric Infrared PIR Motion Sensor Detector Modules DC 2.7V to 12V with Dupont Wire

Price: $30.73
(as of Jul 28,2022 06:34:37 UTC – Details)

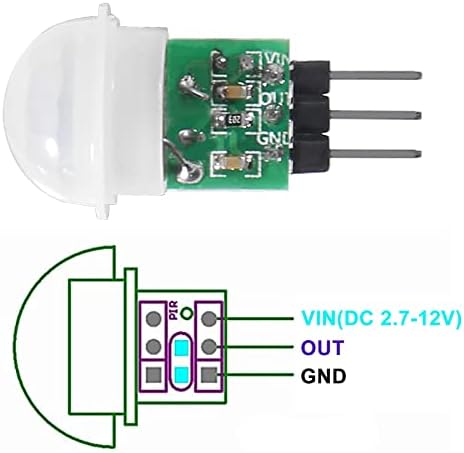

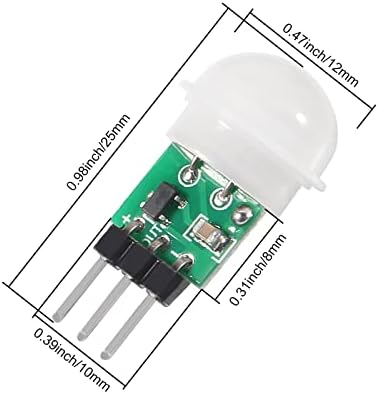

AM312 mini human sensor module ir pyroelectric infrared pir motion sensor detector modules dc 2.7v to 12v for arduino with dupont wire Features: 1. Immunity enhancement, internal use of digital signal processing, direct high-low output. 2. Repeatable trigger: the sensor output high after, the delay period, If there is human activity in its sensing range, the output will remain high until the people left after the delay, It becomes low. The human sensor module will prolong a delay time cycle automatically after detecting every activity of the human body, and the time of the next activity is applied as the starting point for the delay time. Specifications: Product model: AM312 Working voltage: DC 2.7V – 12V Static power consumption: <0.1mA Delay time: 2 seconds Blocking time: 2 seconds Trigger mode: repeatable Sensing range: ≤100 degree cone angle, 3-5 m; (required depending on the lens) Working temperature: -20 - + 60 ℃ PCB size: approx. 10 x 8 mm/ 0.39 x 0.31inch Total size: approx. 25 x 12 x 12 mm/ 0.98 x 0.47 x 0.47 inch (Manual measurement, please allow slight errors on size.) Package Included: 8 x AM312 mini human sensor module 1x 10 pin dupont wire male to female 20 cm
【Excellent Sensitivity】AM312 human sensor module is a digital intelligent automatic control product that is based on passive body infrared technology, which is highly sensitive and reliable to use, they are widely applied for all kinds of automatic induction electrical equipment
【Repeatable Trigger Mode】After high sensing output, during the delay time, human body is active within its sensing range；its output will keep high until the delay after the people leaves, then it will become low
【Wide Applications】AM312 mini human sensor module are small in size, and feature low power consumption and nicely anti-interference, with internal digital signal processing, suitable for security products,human body sensors toys,lighting,industrial automation and controller, etc.
【Package Included】8pcs pir motion sensor detector modules with dupont wire.(Notes: Please keep away from little kids.)
